Brand | Gigabyte |

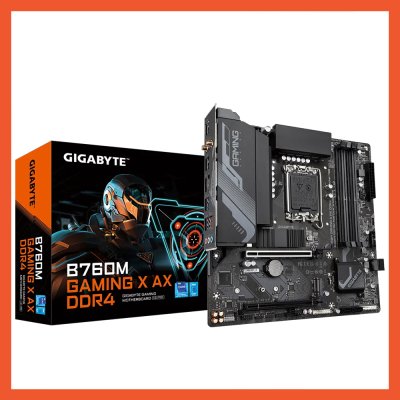

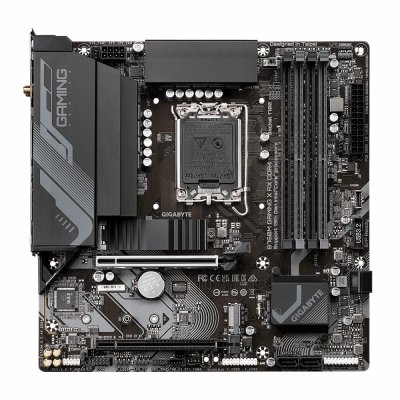

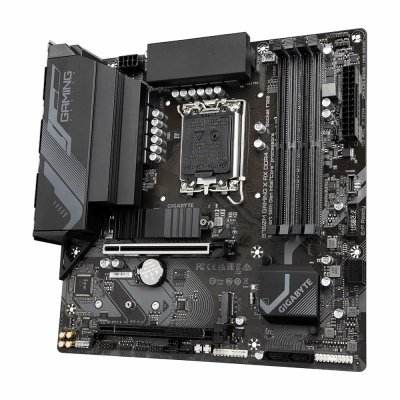

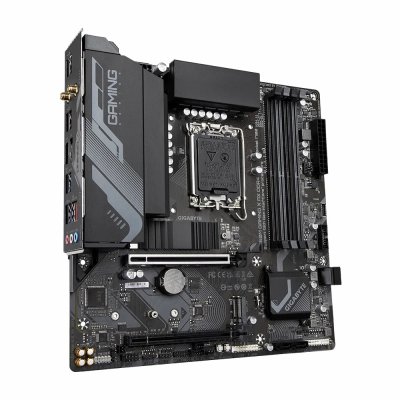

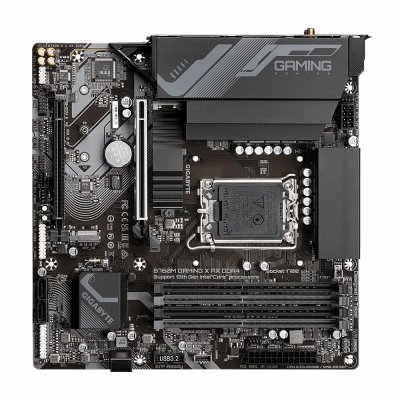

Model | B760M GAMING X AX DDR4 (rev. 1.1) |
SOCKET | LGA 1700 |
Chipset | Intel B760 |
Memory | |
Memory Slot | 4 |
Memory Type | DDR 4 |
Max. Capacity | 128 GB |
Speed | 5333(O.C.)/ 5133(O.C.)/ 5000(O.C.)/ 4933(O.C.)/ 4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200/ 3000/ 2933/ 2666/ 2400/ 2133 |
Graphic | Integrated Graphics Processor on CPU |
Storage | |
SATA 3 | 4 Port |
M.2 | 2 x M.2 Connector(s) 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) |
Raid | RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA |
Network | |
LAN | Realtek 2.5Gb Ethernet |
LAN Speed | 100/1000/2500 Mbps |
Wireless | Intel Wi-Fi 6E AX210 (PCB rev. 1.1) WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands Bluetooth 5.3 Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate |

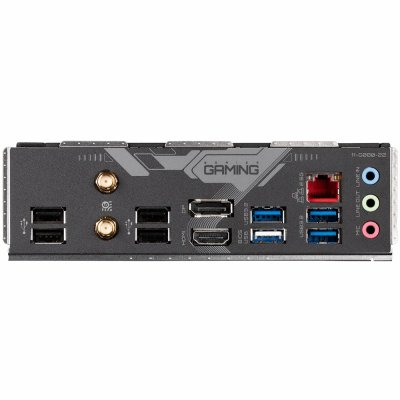

Ports | |
USB 2.0 | 5 Port |
USB 3.2 | 3 x USB 3.2 Gen 1 Type-A Port |
PS/2 | - |
VGA | - |
DVI | - |
HDMI | 1 Port |
DisplayPort | 1 Port |
Type-C | - |
Audio | Realtek 3 Port |
Form Factor | Micro-ATX |
Power Connector | |
CPU | 8 Pin |
Mainboard | 24 Pin |
