| Brand | MSI |
| Model | B760 GAMING PLUS WIFI |
| SOCKET | LGA 1700 |
| Chipset | B760 |
| Memory | |
| Memory Slot | 4 Slot |
| Memory Type | DDR5 |
| Max. Capacity | 256GB |
| Speed | 6800+(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz |
| Graphic | Integrated Graphics Processor (Depends on CPU) |
| Storage | |
| SATA 3 | 4 x SATA |
| M.2 | 2x M.2 |
| Raid | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices |
| Network | |
| LAN | Realtek 8125BG 2.5Gbps LAN |
| LAN Speed | 100/1000/2500 Mbps |
| Wireless | Intel® Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth® 5.3, FIPS, FISMA |
| Ports | |

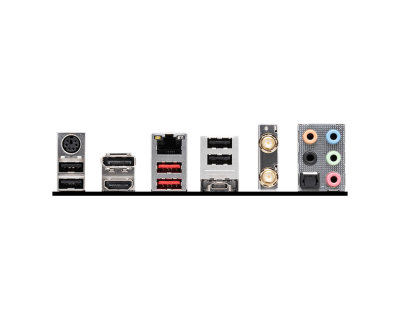

| USB | 4x USB 2.0 (Rear) 2x USB 10Gbps Type A (Rear) 1x USB 10Gbps Type C (Rear) |
| DisplayPort | 1 Port |
| HDMI | 1 Port |
| Audio | 7.1-Channel High Definition Audio Supports S/PDIF output |
| Form Factor | ATX |
| Power Connector | |
| CPU | 4 + 8 Pin |
| Mainboard | 24 Pin |
