| Brand | MSI |

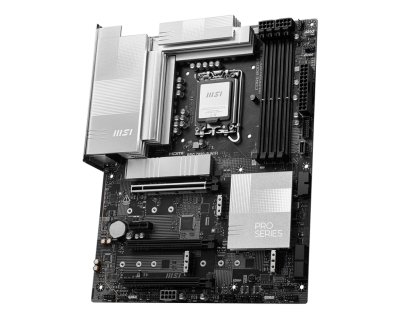

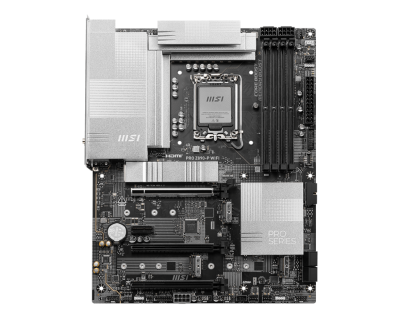

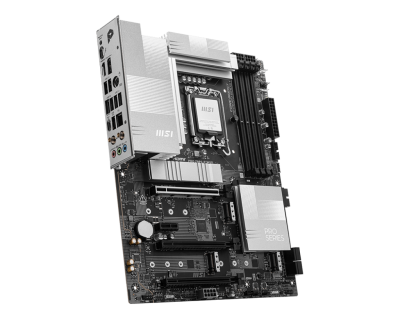

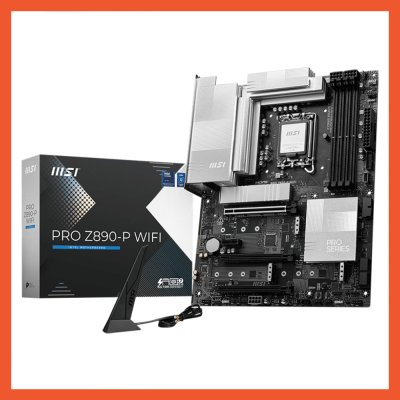

| Model | PRO Z890-P WIFI |
| SOCKET | LGA 1851 |
| Chipset | Z890 |
| Memory | |
| Memory Slot | 4 |
| Memory Type | DDR5 |
| Max. Capacity | 256GB |
| Speed | Memory Support 9200 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s |
| Graphic | Requires a CPU with Integrated Graphics. |
| Storage | |
| SATA 3 | 4x SATA |
| M.2 | 4x M.2 |
| Raid | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices |
| Network | |
| LAN | Realtek 8126 5Gbps LAN |
| LAN Speed | 100 / 1000 / 2500 / 5000 Mbps |
| Wireless | Intel® Wi-Fi 7 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be Supports Bluetooth® 5.4**, MLO, 4KQAM |
| Ports | |

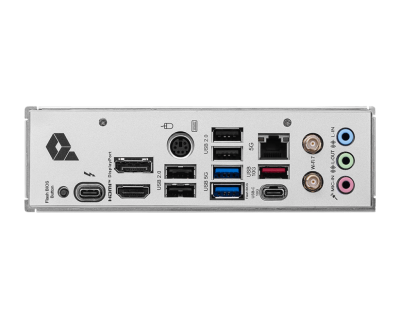

| USB | USB 2.0 4 Port USB 3.2 1 x Thunderbolt 4 40Gbps (Type-C) 2 x USB 5Gbps Type-A 1 x USB 10Gbps Type-C 1 x USB 10Gbps Type-A Port PS/2 1 (Keyboard/Mouse combo) Port |
| HDMI | 1 Port |
| DisplayPort | 1 Port |
| Audio | 3 Port |
| Form Factor | ATX |
| Power Connector | |
| CPU | 24 Pin |
| Mainboard | 8 + 8 Pin |
