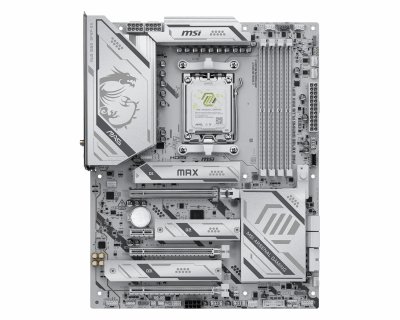

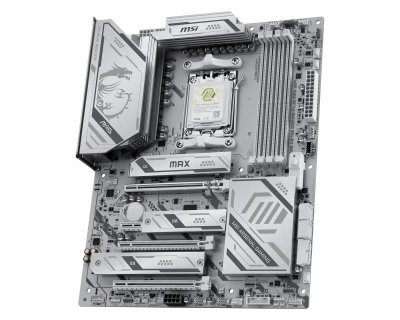

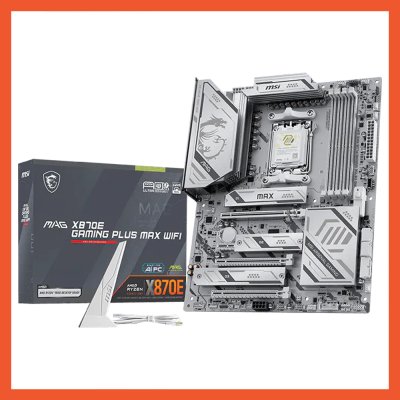

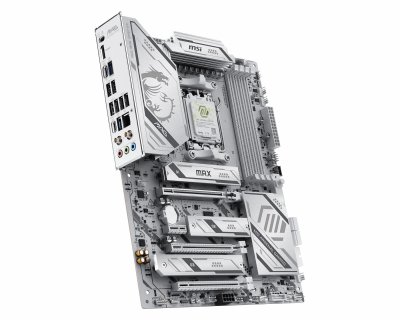

MAINBOARD MSI MAG X870E GAMING PLUS MAX WIFI AM5 DDR5
฿9,390
จำนวน
มีสินค้าอยู่ในคลัง 1 ชิ้น
คำอธิบายสินค้าแบบย่อ
รับประกัน 3 ปี
รายการโปรด
รายละเอียดสินค้า
| Brand | MSI |
| Model | MAG X870E GAMING PLUS MAX WIFI |
| SOCKET | AM5 |
| Chipset | AMD |
| Memory | |
| Memory Slot | 4 |
| Memory Type | DDR5 |
| Max. Capacity | 256GB |
| Speed | 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s |
| Graphic | Requires a CPU with Integrated Graphics. |
| Storage | |
| SATA 3 | 4 Port |
| M.2 | 3 Slot |
| Raid | Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices |
| Network | |
| LAN | Realtek 8126VB 5Gbps LAN |
| LAN Speed | 100 / 1000 / 2500 / 5000 Mbps |
| Wireless | Wi-Fi 7 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be Supports Bluetooth® 5.4**, MLO, 4KQAM |
| Ports | |

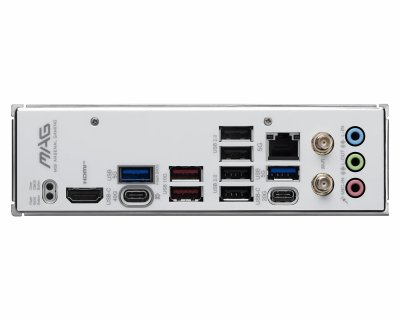

| USB | 4 x USB 2.0 2 x USB 5Gbps Type A 2 x USB 10Gbps Type A 1 x USB 20Gbps Type C 1 x USB 40Gbps Type C |
| DisplayPort | HDMI 1 Port |
| Audio | 3 Port |
| Form Factor | ATX |
| Power Connector | |
| CPU | 24 Pin |
| Mainboard | 8 + 8 Pin |
