Brand | TP-LINK |
Model | TL-SG108 |
Standards and Protocols | IEEE 802.3i / 802.3u / 802.3ab/ 802.3x /802.1p |

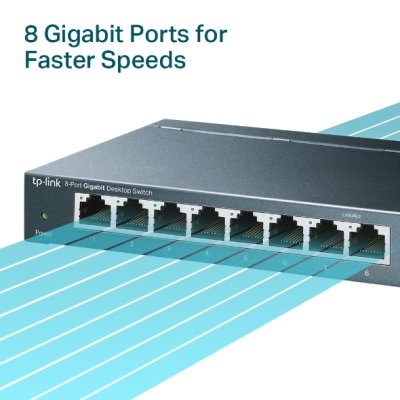

Interface | 8× 10/100/1000Mbps Ports, Auto-Negotiation, Auto-MDI/MDIX |
Fan Quantity | Fanless |
External Power Supply | External Power Adapter (Output: 5VDC / 0.6A) |
LED Indicator | System Power Link/Act indicators per port built into each RJ-45 port |
Dimensions ( W x D x H ) | 6.2 x 4.0 x 1.0 in. (158 x 101 x 25 mm) |
Max Power Consumption | 3.75 W(220V/50Hz) |
Max Heat Dissipation | 10.79 BTU/h |
Packet Forwarding Rate | 11.9 Mpps |
MAC Address Table | 4K |
Packet Buffer Memory | 1.5 Mb |
Jumbo Frame | 16 KB |

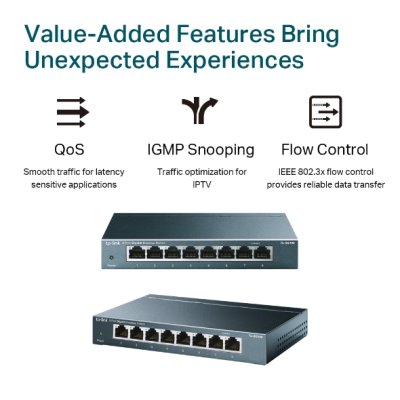

Advanced Features | Green Technology 802.3X Flow Control 802.1p/DSCP QoS IGMP Snooping Loop Prevention |
Transfer Method | Store and Forward |
Certification | CE, FCC ,RoHS |

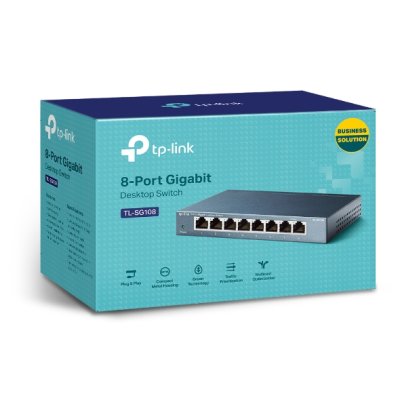

Package Contents | 8-Port 10/100/1000Mbps Desktop Switch Power Adapter Installation Guide |
Environment | Operating Temperature: 0°C~40°C (32°F~104°F) Storage Temperature: -40°C~70°C (-40°F~158°F) Operating Humidity: 10% ~ 90%, non-condensing Storage Humidity: 5%~90% non-condensing |
