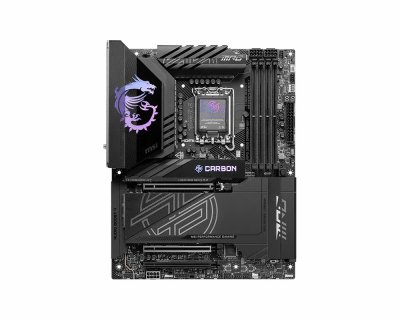

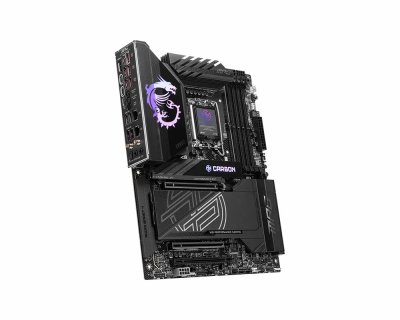

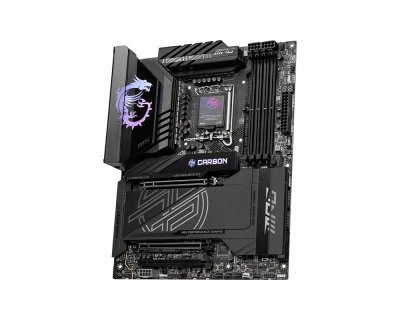

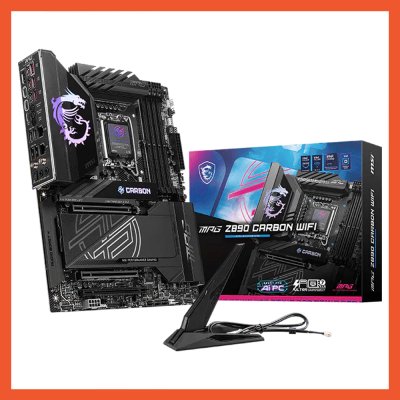

MAINBOARD MSI Z890 CARBON WIFI DDR5 LGA 1851

MAINBOARD MSI Z890 CARBON WIFI DDR5 LGA 1851

฿17,490

จำนวน

มีสินค้าอยู่ในคลัง 1 ชิ้น

คำอธิบายสินค้าแบบย่อ

รับประกัน 3 ปี

แบรนด์: MSI

หมวดหมู่: เมนบอร์ด, INTEL

รายละเอียดสินค้า

Brand	MSI
Model	Z890 CARBON WIFI
SOCKET	LGA 1851
Chipset	Intel
Memory
Memory Slot	4
Memory Type	DDR5
Max. Capacity	256GB
Speed	9200 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s
Graphic	Integrated Graphics Processor (Depends on CPU)
Storage
SATA 3	4 SATA
M.2	5 Slots
Raid	Supports RAID 0, RAID 1, RAID 5 and Raid 10 for SATA Supports RAID 0, RAID 1, RAID 5 and Raid 10 for M.2 NVMe
Network
LAN	-Intel® Killer™ E5000B 5G LAN -Intel® I226V 2.5G LAN
LAN Speed	-100 / 1000 / 2500 / 5000 Mbps -100 / 1000 / 2500 Mbps
Wireless	Intel® Killer™ BE1750x Wi-Fi 7 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be Supports Bluetooth® 5.4*, MLO, 4KQAM 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 version 24H2. ** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details. Bluetooth 5.4 will be ready in Windows 11 version 24H2.

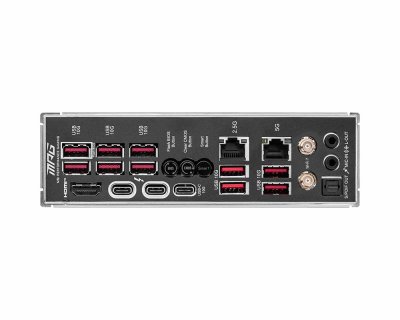

Ports
USB	2 x Thunderbolt 4 USB-C - Supports up to 40Gbps transfer rate with Thunderbolt devices - Supports up to 20Gbps transfer rate with USB devices - Each port can daisy-chain up to three Thunderbolt 4 devices or five Thunderbolt 3 devices 1 x USB 10Gbps Type-C 2 x USB 10Gbps Type-A 8 x USB 10Gbps Type-A Port
DisplayPort	1 x HDMI
Audio	Realtek® ALC1220P Codec 7.1-Channel USB High Defination Audio Supports S/PDIF output
Form Factor	ATX
Power Connector
CPU	24 Pin
Mainboard	8 + 8 Pin
